MC-2104

《簡　　介》：

1.  Application:

     This specification applies to silicon non zero-crossing photo triac chips,

     Device No. : MC-2104

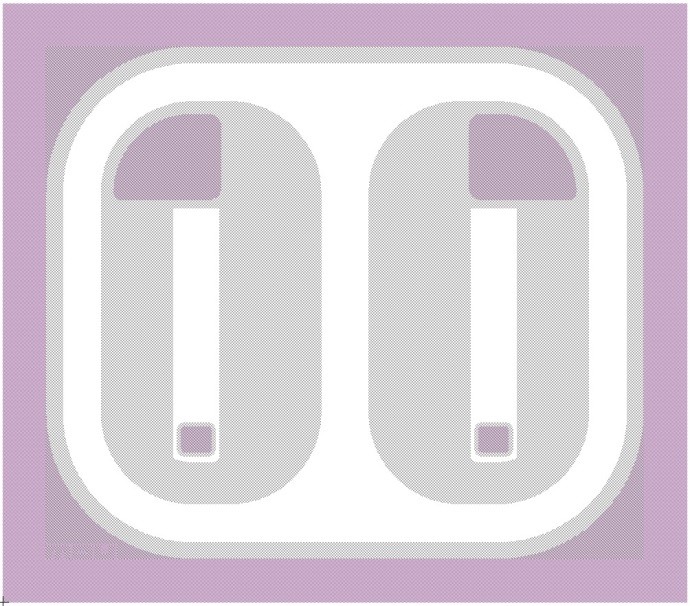

.  Structure:

     2-1. Planar type.

     2-2. Electrodes: Aluminum alloy.

《商品介紹》：

Parameter	Test Condition	Symbol	MC-2104
Peak Off-State Blocking Voltage	IDRM= 100μA	VDRM	Min.> 400V
Peak Off-State Blocking Current	VDRM=	IDRM	Max.< 100nA
	Rated VDRM
Peak ON-State Voltage	ITM= 100mA	VTM	Max.< 3.0V
Inhibit Voltage	IDS= 10μA	VINH	N/A
Holding Current		IH	150uA
Remark			Non Zero-Crossing Mode
