MC-4037

《簡　　介》：

1.  Application:

     This specification applies to silicon photo voltage generator pile up and discharge chips.

Circuits embedded with short current limit circuit, used with Photo MOS.

Device No.: MC-4037

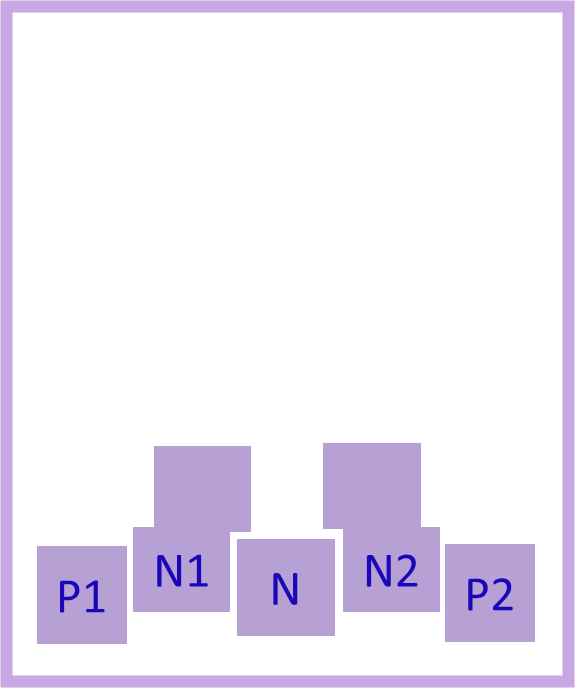

2.  Structure:

     2-1. Planar type.

     2-2. Electrodes: Aluminum alloy.

《商品介紹》：

Parameter	Test Condition	Symbol	MC-4037A	MC-4037B
Open-Circuit Voltage	IF=5mA	VOC(V)	8	8
		Typ.
Short-Circuit Current	IF=5mA	ISC(μA)	2.5	2.5
		Typ.
Current limit	IF=5mA	ILT (mA)	300	400
