MP-6204/MP-6206/MP-6210

《簡　　介》：

1. Application:

    This specification applies to N-Channel Enhancement Silicon MOSFET chips.

    Device no.: MP-6204/MP-6206/MP-6210

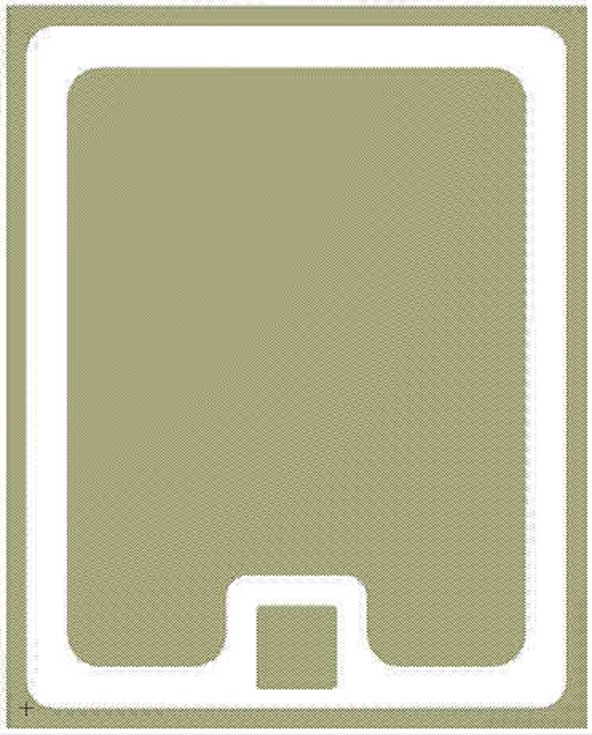

2. Structure :

    2-1. Trench type.

    2-2. Electrodes:  Source (Top side): Aluminum alloy.

                    Gate (Top side): Aluminum alloy.

                    Drain (Back side): Ti/Ni/Ag.

《商品介紹》：



Parameter	Test Condition	Symbol	MP-6204	MP-6206	MP-6210	MP-6010
Drain to Source  Breakdown Voltage	VGS= 0V; ID= 250uA	BVDSS(V) Min.	42	60	105	100
Gate Threshold  Voltage	VDS= VGS; ID= 1mA	VGS(TH) (V)Typ.	1.6	1.6	1.6	1.9
Drain to Source ON Resistance	VGS= 5V;ID= 150mA	RDS(ON) (Ω)Typ.	50(mΩ)	65(mΩ)	240(mΩ)	1
