MP-6245/ MP-6220

《簡　　介》：

1. Application:

     This specification applies to N-Channel Enhancement Silicon MOSFET chips.

     Device no.:MP-6245/ MP-6220

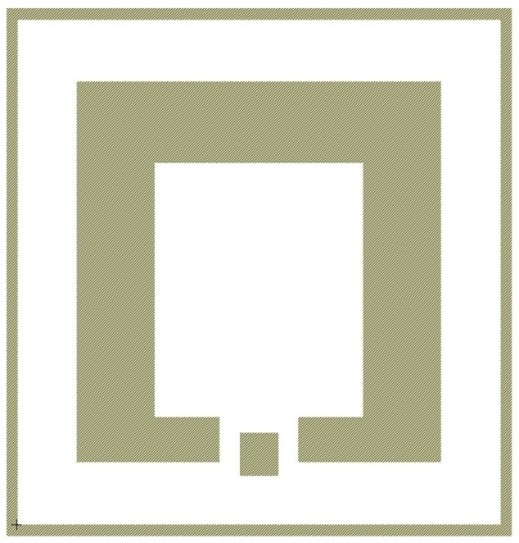

2. Structure :

     2-1. Planar type.

     2-2. Electrodes:  Source (Top side): Aluminum alloy.

                     Gate (Top side): Aluminum alloy.

                     Drain (Back side): Ti/Ni/Ag.

《商品介紹》：

Parameter	Test Condition	Symbol	MP-6245	MP-6220
Drain to Source  Breakdown  Voltage	VGS= 0V; ID= 250uA	BVDSS(V) Min.	400	200
Gate Threshold  Voltage	VDS= VGS; ID= 1mA	VGS(TH) (V)Typ.	1.8	1.8
Drain to Source ON Resistance	VGS= 5V;ID= 150mA	RDS(ON) (Ω)Typ.	2.8	0.8
